● Static torque sensor
● Compact structure for easy installation
● Protection level：IP65
● Used for measuring static, non-continuous rotational torque values.
●Patented product, infringement will be pursued
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

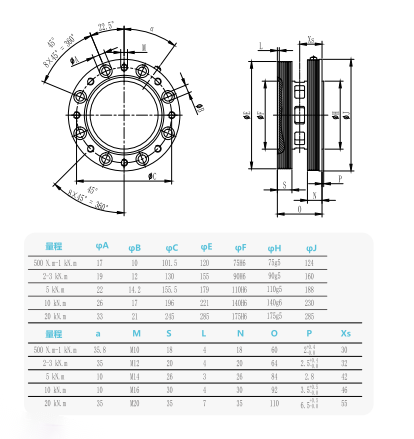

| Rated range | 详Please refer to the table | Insulation resistance | ≥5000MΩ/100VDC |
Output sensitivity | 1.0±20%mV/V | Excitation voltage | 5V |
Zero output | ±3%mV/V | Maximum excitation voltage | 15V |
| Nonlinearity | 0.03%F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.03%F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.03%F.S. | Safe overload | 120％ F.S. |
| Creep (30 minutes) | 0.03%F.S. | Ultimate overload | 150％ F.S. |
| Temperature coefficient of sensitivity drift | 0.03%F.S./10℃ | Cable wire size | φ4/φ6×3m |
| Temperature coefficient of zero drift | 0.03%F.S./10℃ | Protection | IP66 |
| Input resistance | 1000±20Ω | Output resistance | 1000±10Ω |
Direction of force | Wiring method |
 |  |
